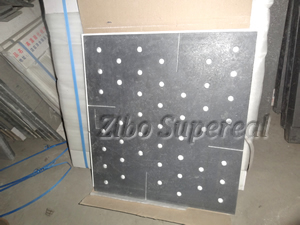

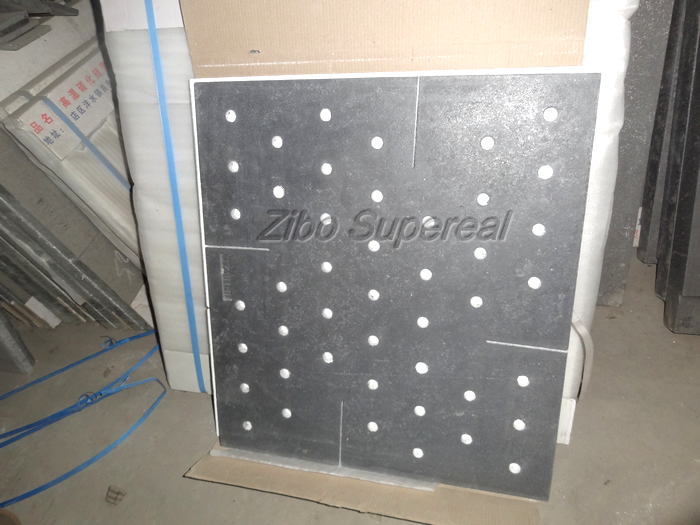

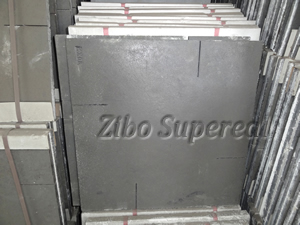

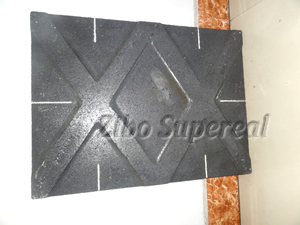

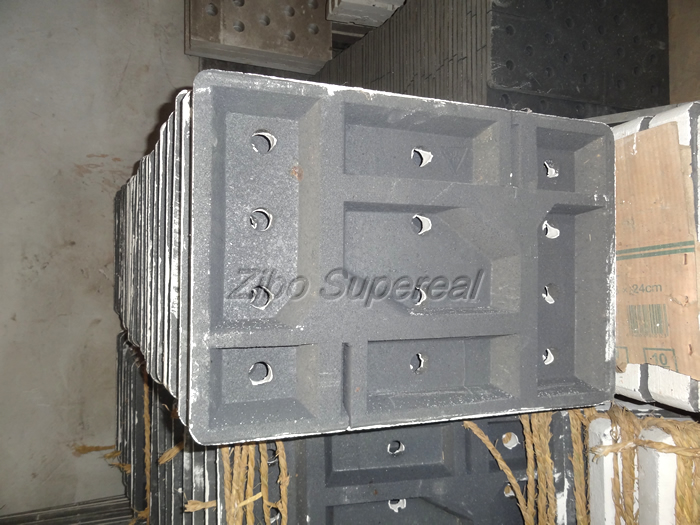

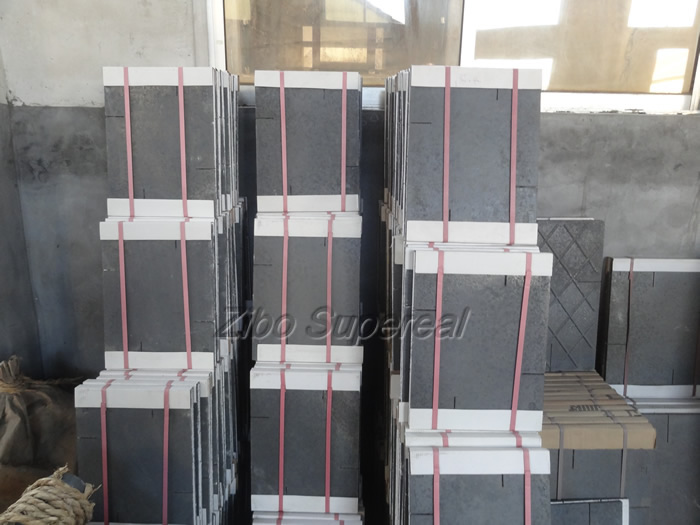

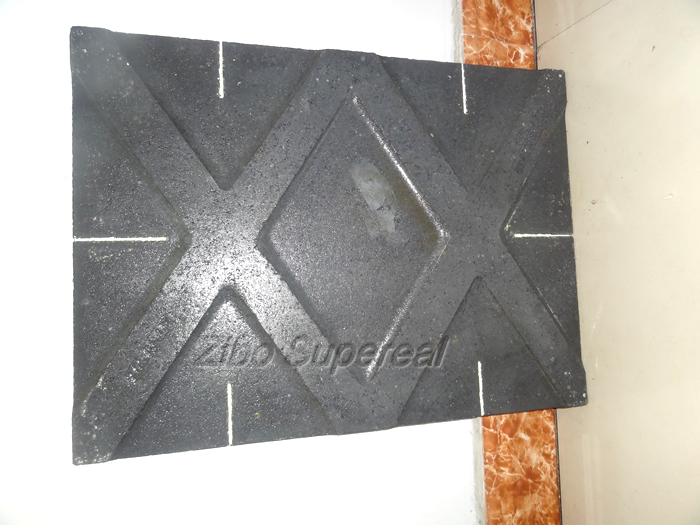

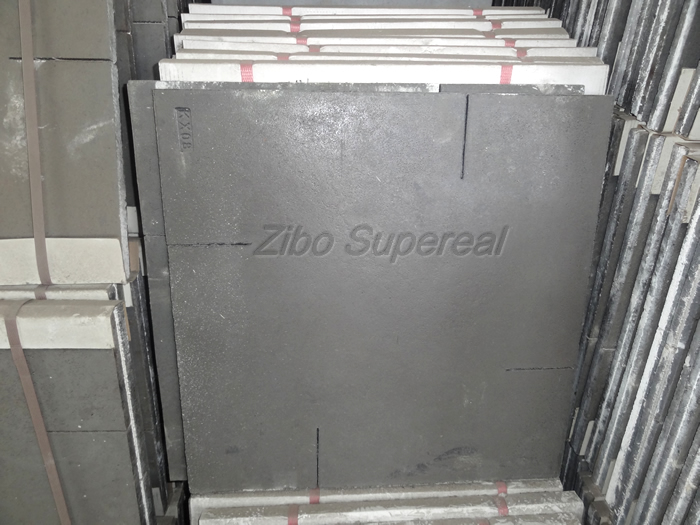

Silicon carbide plate |
|
|
The silicon carbide plate can be installed in tunnel kiln,shuttle kiln and roller hearth kiln to fire the sanitary ware ,building ceramic, domestic ceramic and electric ceramic under 1400℃.
Silicon carbide plate is normally used together with the SIC support posts and has the features of stable structure, high strength, no deformation, no crack and long service life (repeat use: 200times) when it works under high temperature. At the same time this SIC kiln furniture can also help you save over 30% energy because this material has large thermal conductivity and excellent heat transfer efficiency.
LengthxWidth (mm) |
LengthxWidth (mm) |
LengthxWidth (mm) |
LengthxWidth (mm) |
LengthxWidth (mm) |
765x730 |
600x550 |
520x490 |
460x440 |
400x380 |
760x550 |
600x520 |
520x400 |
460x350 |
400x350 |
760x520 |
600x500 |
500x500 |
460x320 |
400x300 |
760x500 |
600x400 |
500x480 |
450x450 |
400x250 |
740x520 |
600x370 |
500x450 |
450x430 |
380x380 |
732x445 |
600x300 |
500x400 |
450x420 |
365x365 |
720x630 |
570x500 |
500x390 |
450x400 |
350x350 |
700x700 |
560x270 |
500x370 |
450x380 |
350x300 |
700x550 |
550x550 |
500x300 |
450x350 |
340x340 |
700x520 |
550x520 |
490x470 |
450x340 |
340x320 |
700x500 |
550x500 |
480x480 |
450x300 |
340x310 |
700x450 |
550x480 |
480x420 |
440x440 |
330x330 |
700x400 |
550x450 |
480x400 |
430x420 |
320x320 |
660x600 |
550x430 |
480x380 |
430x340 |
310x310 |
650x400 |
550x400 |
480x360 |
420x300 |
300x300 |
640x600 |
550x370 |
480x330 |
420x400 |
290x290 |
640x500 |
550x300 |
480x280 |
420x380 |
250x250 |
610x610 |
530x530 |
470x360 |
420x340 |
240x240 |
600x600 |
520x500 |
470x340 |
400x400 |
150x150 |
Thickness: 8-25mm
The above sizes are part of our common sizes, we could produce other more sizes according to customers’ requirement. |
|
Main Technical Data: |
Item |
Unit |
Result |
Bulk density |
g/cm3 |
2.75-2.85 |
Open porosity |
% |
<14 |
Compressive strength |
Mpa |
>90 |
Modulus of rupture |
Mpa |
>45(20℃) |
Mpa |
>56(1300℃) |
Coefficient of thermal expansion |
K-1 * 10-6 |
4.8 |
Refractoriness under load |
℃ |
>1700 |
Working temperature |
℃ |
1400 |
Thermal conductivity(at 1200℃) |
W/m·k |
14 |
SIC |
% |
≥88 |
SIO2 |
% |
<6 |
Al2O3 |
% |
<2 |
|
|
|
|
|
